Small batch box type heat treatment furnace

Machine overview

This series of electric chamber type furnaces is intermittent operation furnaces which can be used in quenching heat treatments of carbon steel, alloy steel, high-speed steel and other metal parts. Organic liquid can be dripped into cracking atmosphere of the furnace to realize little-oxidizing heating.

Share:

950 ℃ Box Type Quenching Resistance Furnace for carbon steel

Box Type Quenching Heat Treatment Furnace

Home

> Products > Box Atmosphere Protection Heat Treatment Furnace > Box Type Quenching Heat Treatment Furnace > Small batch box type heat treatment furnace
Details Parameters Application Production Site Customer Site Video Related Products

Details

This series of electric chamber type furnaces is intermittent operation furnaces which can be used in quenching heat treatments of carbon steel, alloy steel, high-speed steel and other metal parts. Organic liquid can be dripped into cracking atmosphere of the furnace to realize little-oxidizing heating.

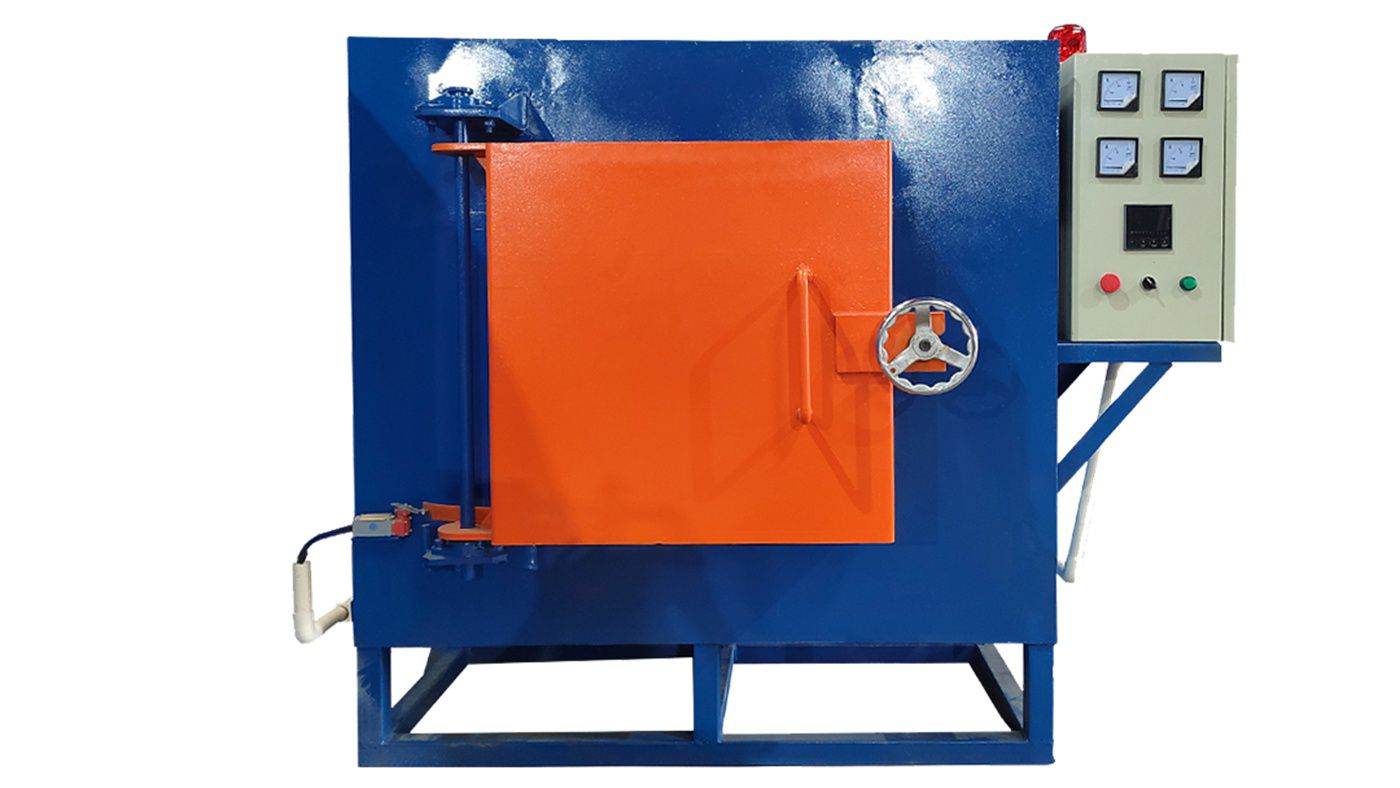

Small batch box type heat treatment furnace


Small batch box type heat treatment furnace


Characteristics of box type annealing furnace:

1. Adopt mixed furnace lining of ultra-light refractory bricks (0.6/cubic meter) and ceramic fiber, greatly shortening starting heating time and extraordinarily saving energy up to 20%-30%.

2. Specially-designed furnace door and roller sealing, and built-in heating wire ensure excellent furnace door sealing and uniform furnace temperature.

3. Double-thermocouple control: one thermocouple is for testing furnace temperature, and the other one is for over-heat protection.

4. The furnace is equipped with interlock protection device, which can prevent Failure and accident due to misoperation.

5. Adopt intelligent digital temperature-control system, which feature clear reading, conveniently adjusted, high temperature control precision, easy structure, safe and reliable.



Product Details:

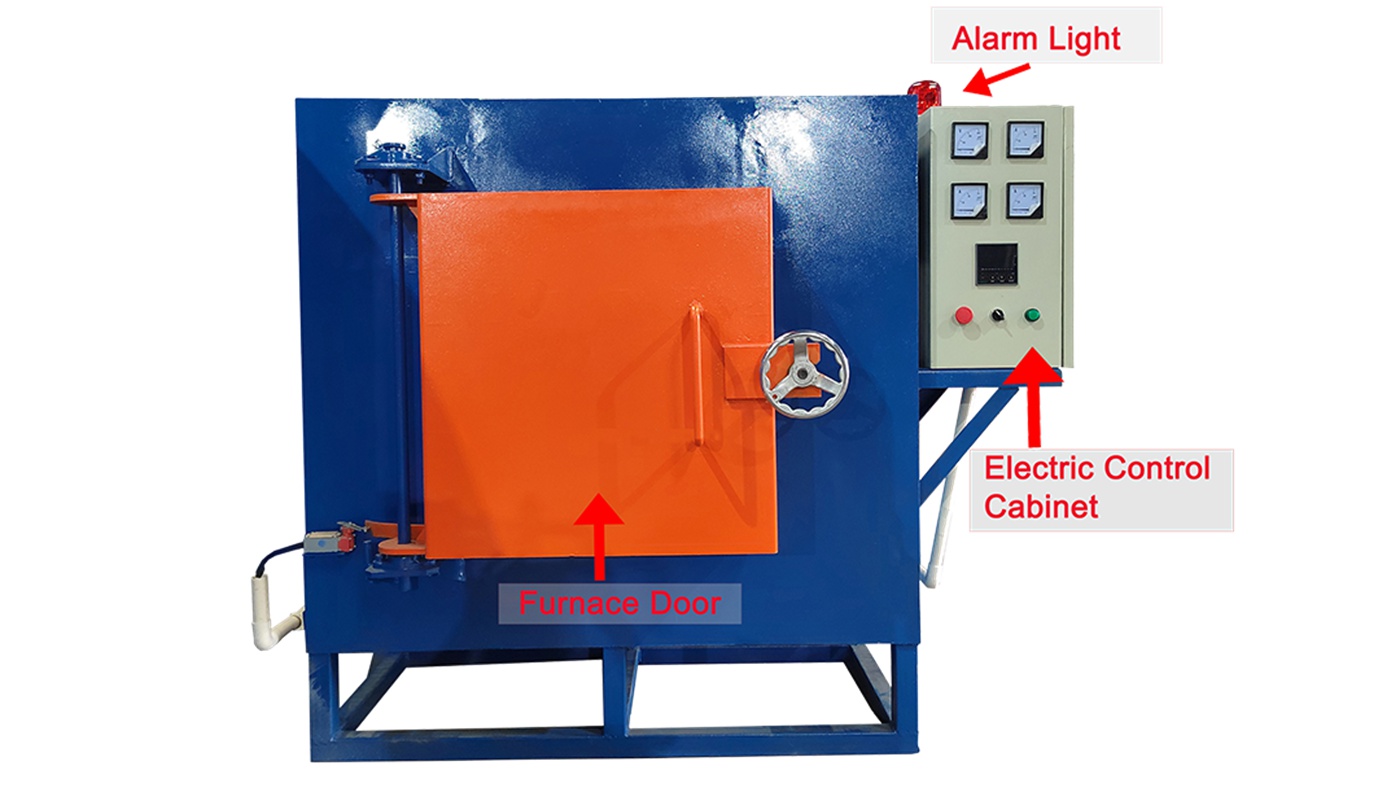

Small batch box type heat treatment furnace

Parameters

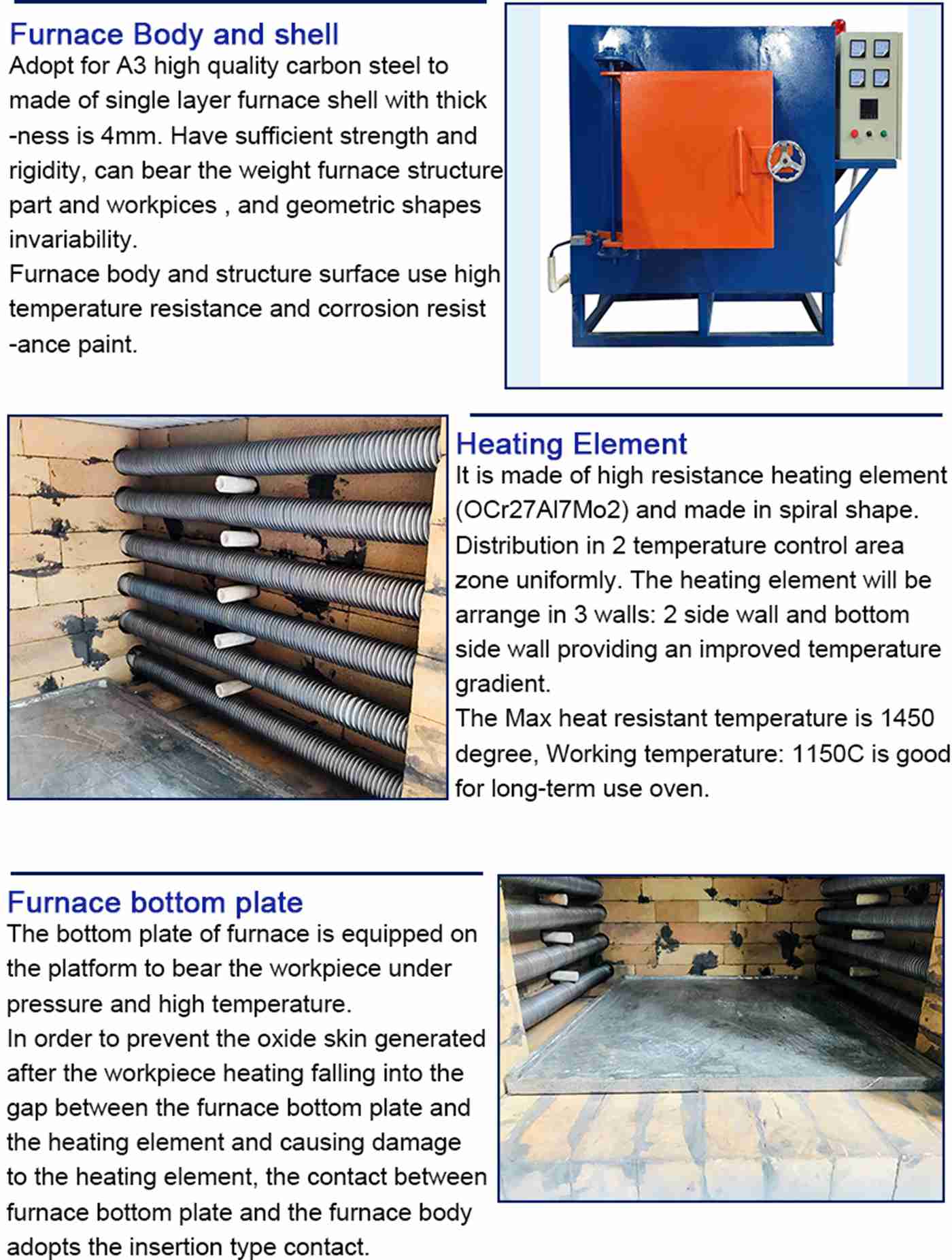

Small batch box type heat treatment furnace

Application

Small batch box type heat treatment furnace

Production Site

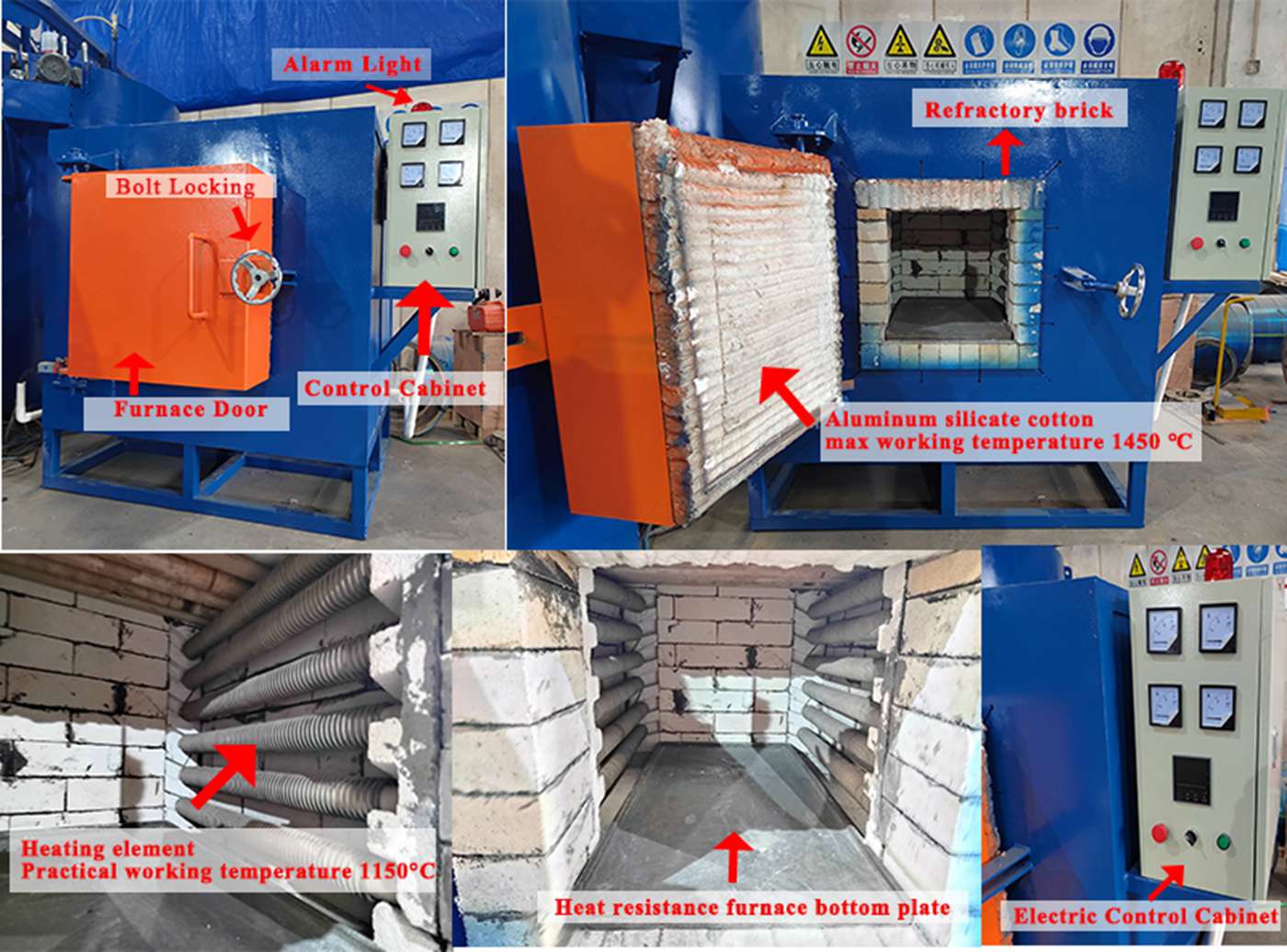

Small batch box type heat treatment furnace

Customer Site:

Small batch box type heat treatment furnace

Video

950 ℃ Box Type Quenching Resistance Furnace for carbon steel

950 ℃ Box Type Quenching Resistance Furnace for carbon steel
