What Is a Bogie Hearth Furnace and How Does It Work?

In the world of industrial heat treatment, the bogie hearth furnace, also known as a bogie-type furnace or car-bottom furnace, plays a crucial role in the processing of large, heavy, and bulky metal parts. This type of furnace is highly favored for its flexibility, uniform temperature distribution, and ability to handle high loads.

What Is a Bogie Hearth Furnace?

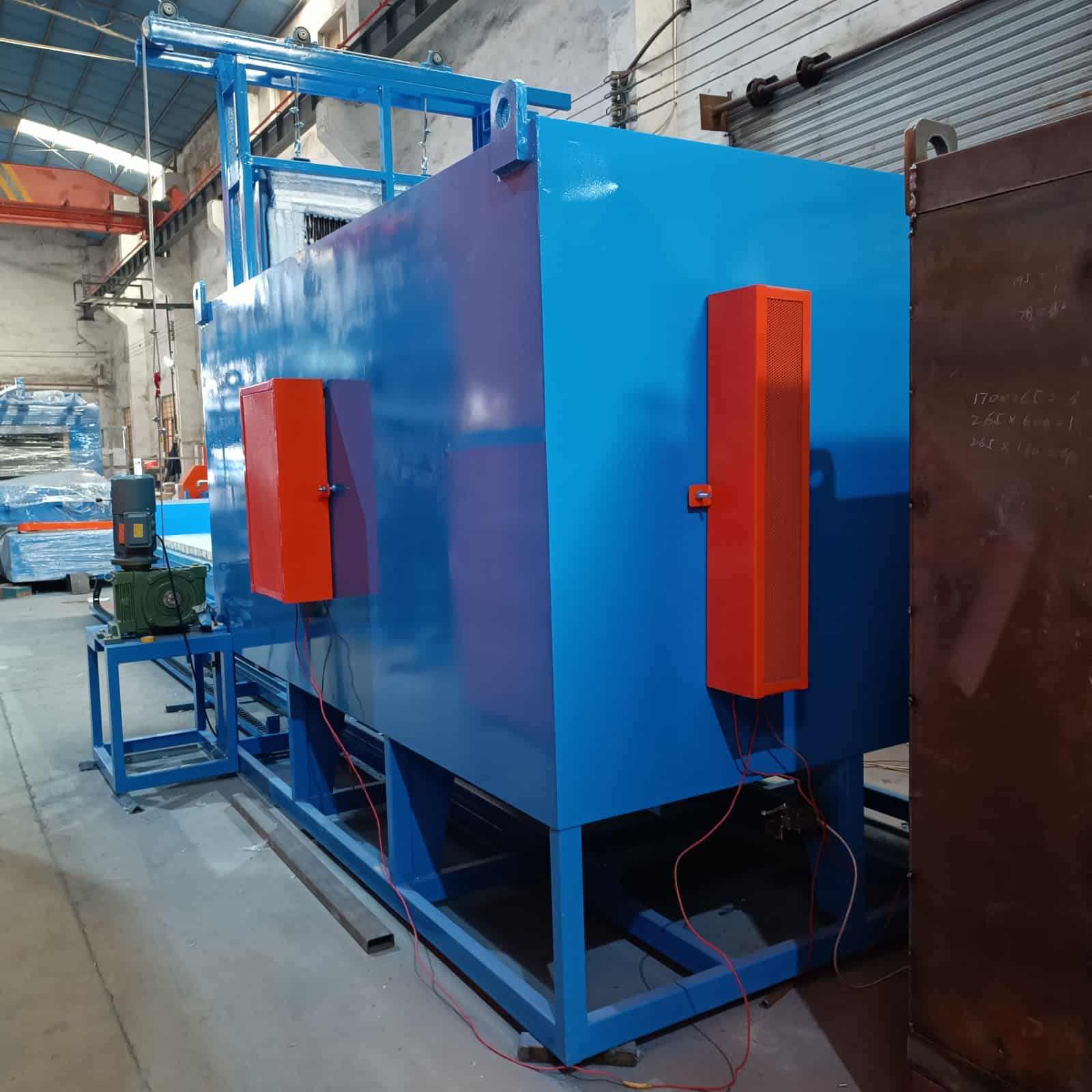

A bogie hearth furnace is a type of batch heat treatment furnace where the hearth or bottom platform (the “bogie”) is mounted on wheels. This bogie can be moved in and out of the furnace chamber for easy loading and unloading of large workpieces. It is commonly used for annealing, normalizing, hardening, and tempering of components in the steel, casting, and forging industries.

Main Features:

• Movable Bogie Platform: The furnace’s base acts as a trolley that carries the workload into the furnace and out once the heat treatment process is complete.

• Uniform Heating: High-quality refractory insulation and strategically placed heating elements ensure consistent temperature control.

• Heavy Load Capacity: Ideal for oversized components such as steel rolls, shafts, or welded fabrications.

• Flexible Heating Atmosphere: Can be used in open air or modified with a protective atmosphere to prevent oxidation.

• Precise Control Systems: Modern bogie hearth furnaces are equipped with PID temperature controllers, programmable logic controllers (PLC), and safety interlocks for efficient operation.

Applications:

Bogie hearth furnaces are widely used in the following industries:

• Metallurgy and Foundry: For annealing large castings and forgings.

• Steel Plants: For heat treating steel plates, bars, and pipes.

• Automotive and Aerospace: For normalizing and stress relieving of chassis or structural components.

• Mechanical Manufacturing: For hardening machine frames, heavy molds, and rollers.

Advantages:

1. Ease of Operation – The moving hearth simplifies the handling of large and heavy parts.

2. Versatile – Suitable for various heat treatment processes and a range of materials.

3. Durable and Reliable – Built for long-term performance even under high temperatures and heavy usage.

4. Energy Efficient – Many designs include regenerative burners or advanced insulation to reduce heat loss.

Conclusion:

The bogie hearth furnace is an essential asset in industries where large-scale or heavy-duty heat treatment is needed. Its unique design allows for easy loading, uniform heating, and reliable performance. Whether you are processing steel, alloys, or large cast parts, a bogie hearth furnace ensures consistent quality and process efficiency.
