What is a Pit Furnace and How Does It Work in Heat Treatment?

A pit furnace, also known as a shaft furnace, is a type of vertical heat treatment furnace designed for processing long or heavy components that require uniform heating and controlled atmospheres. These furnaces are commonly used for annealing, normalizing, tempering, carburizing, and nitriding processes.

Structure and Design

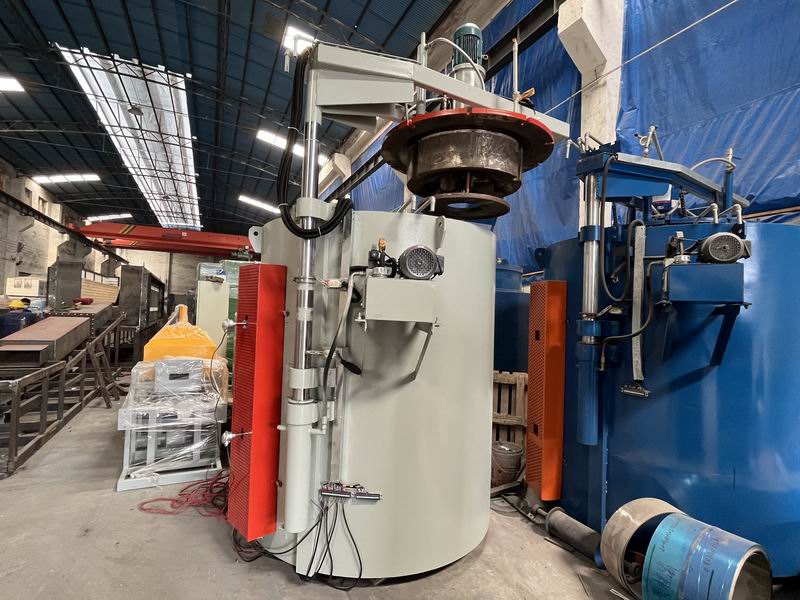

Pit furnaces are typically cylindrical and vertically oriented, with a loading chamber that extends below ground level. The heating elements are positioned along the chamber walls or embedded in refractory linings. This vertical structure allows for easy loading of long shafts, rolls, rods, or coils by crane or hoist.

The furnace cover is removable and often equipped with insulation to minimize heat loss. Some advanced models may include automatic lids and programmable temperature control systems for precise thermal management.

Applications in Heat Treatment

Pit furnaces are ideal for parts that require deep and uniform heating from all directions. Typical applications include:

• Annealing of steel rods or stainless steel coils

• Tempering of long shafts or gears

• Carburizing or nitriding of tool steels

• Stress-relieving of welded components

In addition, pit furnaces can be used in either air or protective atmosphere (such as nitrogen or endothermic gas) to prevent surface oxidation and achieve bright, clean surfaces.

Advantages of Pit Furnaces

• Excellent temperature uniformity

• Suitable for heavy or long workpieces

• Flexible for multiple heat treatment processes

• Energy-efficient due to good insulation and design

• Easy loading/unloading with hoist systems

Customization Options

Modern pit furnaces can be customized with features such as:

• Vacuum or inert atmosphere sealing

• Multi-zone temperature control

• Data logging and PLC automation

• Safety interlocks and alarms

These improvements enhance both performance and safety, making pit furnaces a reliable choice for a wide range of industrial heat treatment operations.
